Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: XEAST
  • Model Number: XE-50R
  • Size: 130mm*190mm
  • Precision: ±1mm/7m
  • Wavelength: 635nm
  • Type: Vertical & Horizontal Lasers
  • Measurement Model: 5 lines
  • Color: Red

Packaging & Delivery

Delivery Time 5

Product Description



XEAST XE-50R Red Beam Laser Level 3d 360 machine

What is the Details of our Laser Level?


Product Name

XEAST XE-50R Red Beam Laser Level 3d 360 machine

BrandXEAST Laser Level
ModelXE-50R
laser wave length635nm laser diode,10mw
Light SourceCLass ll
Horizontal and vertical 10m±1mm
Next point accuracy10m±1mm
Level accuracy±1mm/7m
Right Angle accuracy90°  ±0.025°  (±1mm/3m)
Spot accuracy±1mm/1m
Orthogonal accuracy±1mm/3m
Width of Line3mm/5m
Automatic Compensatory range±3°
Laser emission Angle110°
Temperature Range-10℃ -50℃
Working rangeIndoor 30m;Outdoor 30-50m
PowerDC4.5(AA1.5Vx3)
AccessoriesSuitcase, goggle, charger,  Strap

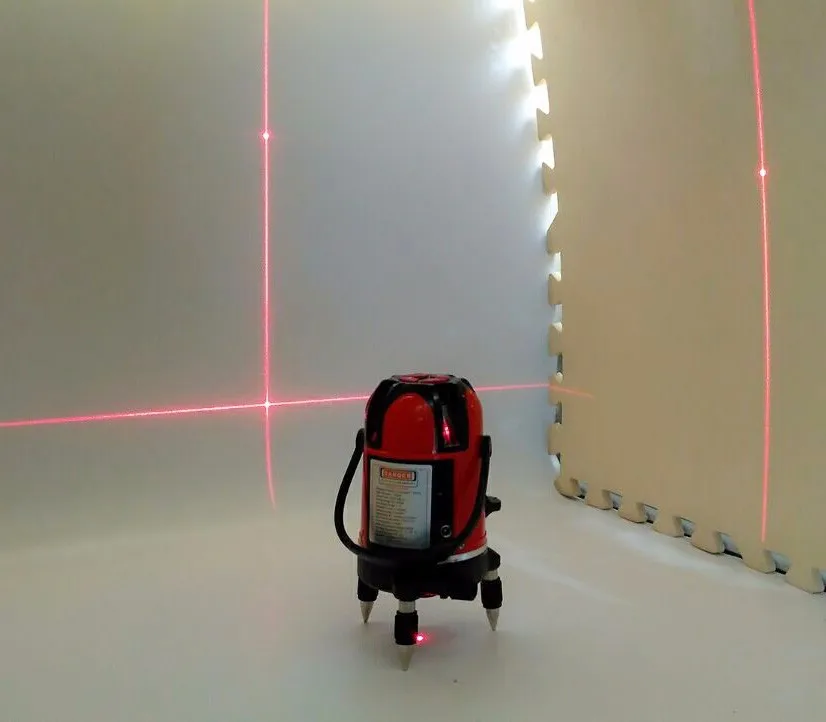

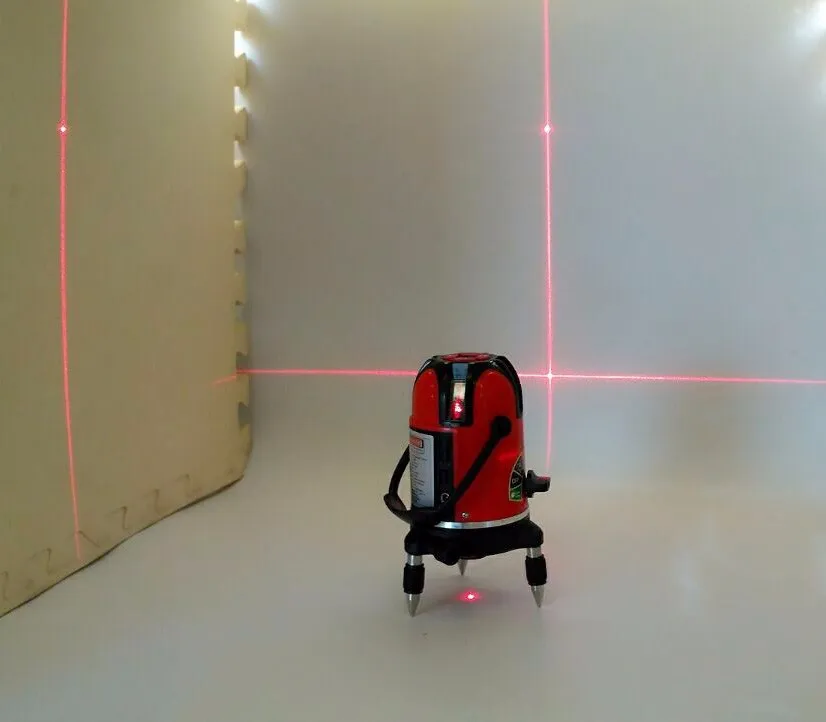

Product Picture

Product Pictures




Product Features

What is The Product Features of Our Laser Level?


1. 5 lines laser
2. 6 points (one point below the level of the laser instrument, adding 5 laser points is in front in the laser level)
3. Can be rotated 360 degrees, convenient to use.
4. Special features (Outdoor mode)


How to Use our Laser Level?


Step 1.  Set the laser level on a tripod or stable surface, adjust the level of degree. If the instrument is tilted too far out of range, the laser will blink and sound an alarm.
Step 2.  Open the knob to open the laser level. Laser light is emitted. Press the "V" or "H" to adjust the number of laser
Step 3.  Rotary machine direction of the laser towards the target.
Step 4.  When the end of the work, turn the rotary switch knob counterclockwise to close the instrument
